Machine Part Hardened Teeth 12M Steel Spur Gear

China Luoyang Hongxin Heavy Machinery Co., Ltd certification
I'm Online Chat Now

Machine Part Hardened Teeth 12M Steel Spur Gear

Machine Part Hardened Teeth 12M Steel Spur Gear
Machine Part Hardened Teeth 12M Steel Spur Gear Machine Part Hardened Teeth 12M Steel Spur Gear Machine Part Hardened Teeth 12M Steel Spur Gear

Large Image :  Machine Part Hardened Teeth 12M Steel Spur Gear

Product Details:
Place of Origin: Henan, China
Brand Name: LYHX
Payment & Shipping Terms:
Minimum Order Quantity: 1 piece
Price: $1-5/ pcs
Packaging Details: Customized
Delivery Time: 10 days
Supply Ability: 5000 per month
Detailed Product Description
Material: C45, Stainless Steel Shape: Rack Gear
Porecessing: Hobbing Module: 0.4-12 M
Teeth Type: Spur And Helical Teeth Surface: Blakc, Zinc Plated
Heat Treatment: Teeth Hardened Certificate: ISO, BV, SGS
High Light:

12M Steel Spur Gear

,

C45 Steel Spur Gear

,

12M stainless steel spur gears

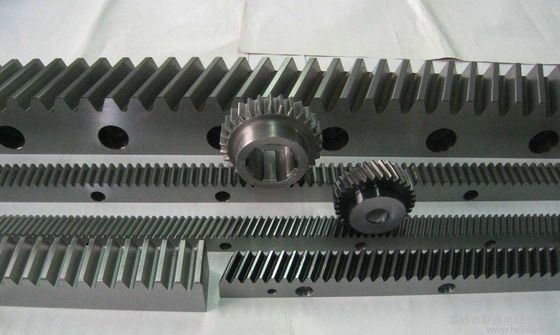

Machine Part Hardened Teeth Gear Rack And Pinion Spy Rack Gear



Our spur and helical gear racks are welcomed by many customers for its stable high quality and competitive price.



The producing character of LYHX gear racks.

1. Gear rack length: the longest is 4000mm without joint. It can be jointed to any length.

2. Material: steel C45, stainless steel, high strength steel, copper, aluminium, nylon, plastic, POM etc;

3. Module: 0.3-8 (pitch from 0.942-25.12mm, DP 3.175-85);

4. Surface: zinc (galvanized), black, chromium plating, nickel plating, quenching and tempering etc.

5. Quality: stable and high: accumulated tolerance 0.1mm per 1000mm for normal quality;

Accumulated tolerance 0.02mm per 1000mm for 4 sides ground.

Prices for above quality are very competitive for us.

6. Heat treatment: teeth can be hardened to HRC 43-50.



The quality character of LYHX gear racks:

1. Stable transmission and low noise;

2. Effectively avoid normal tolerance based on high precision;

3. The surfaces can be ground to grade 7 quality, and teeth can be ground to grade 6 quality;

4. The mounting holes can be made as request;

5. The price is competitive even the quality is high.



Facilities

Machining center;

CNC gear hobbing machine;

CNC gear shaper;

CNC gear grinding machine;

CNC turning machine;

CNC milling machine.

Y58200 CNC large gear rack shaper,

Y58125A gear rack shaper,

England gear rack shaper

and Russia gear rack shaper,

Gleason machine.

Material

Steel: C45, Q235, 40Cr, 20CrMnTi, etc.

Stainless steel: 301, 201, 304, 316 etc.

Brass: H59 H68 H80 H90 etc.

Aluminium: 6082, 6061, A380 etc.

Aluminium alloy: 6061, 5083, 7050, etc.

More: PA6, PA66, POM, ABS etc

Teeth type

Spur teeth gear rack;

Helical teeth gear rack;

Round gear rack;

Tube gear rack;

Curved gear rack.

Surface Polishing; Plating; Galvanized; Black; chromium plating, nickel plating; painting etc.
